The Bernevig-Hughes-Zhang (BHZ) model

As an example of a two-dimensional topological insulator, the BHZ model is presented here:

julia> using LinearAlgebra
julia> function H₀(k, p) # BHZ
    k1, k2 = k
    tₛₚ = 1
    t₁ = ϵ₁ = 2
    ϵ₂, t₂ = p

    ϵ = -t₁*(cos(k1) + cos(k2)) + ϵ₁/2
    R1 = 0
    R2 = 0
    R3 = 2tₛₚ*sin(k2)
    R4 = 2tₛₚ*sin(k1)
    R0 = -t₂*(cos(k1) + cos(k2)) + ϵ₂/2

    s0 = [1 0; 0 1]
    sx = [0 1; 1 0]
    sy = [0 -im; im 0]
    sz = [1 0; 0 -1]

    I0 = Matrix{Int64}(I, 4, 4)
    a1 = kron(sz, sx)
    a2 = kron(sz, sy)
    a3 = kron(sz, sz)
    a4 = kron(sy, s0)
    a0 = kron(sx, s0)

    ϵ .* I0 .+ R1 .* a1 .+ R2 .* a2 .+ R3 .* a3 .+ R4 .* a4 .+ R0 .* a0
end

You can also use our preset Hamiltonian function BHZ to define the same Hamiltonian matrix as follows:

julia> H₀(k, p) = BHZ(k, p)

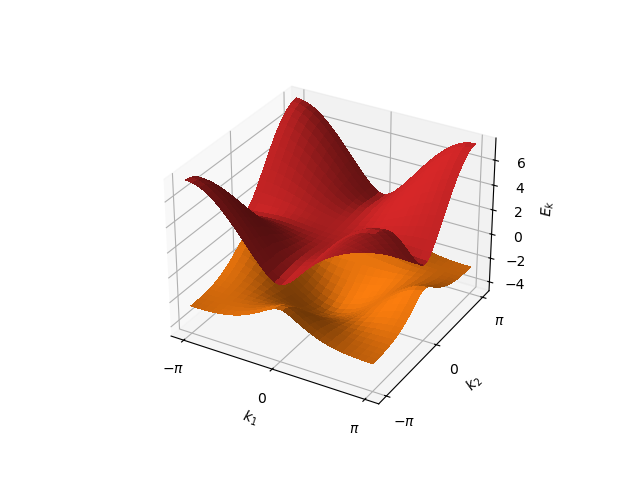

To calculate the dispersion, execute:

julia> H(k) = H₀(k, (2, 2))
julia> showBand(H; value=false, disp=true)

Next, we can compute the $\mathbb{Z}_2$ numbers using Z2Problem:

julia> prob = Z2Problem(H);
julia> sol = solve(prob)

The output is:

Z2Solution{Vector{Int64}, Nothing, Int64}([1, 1], nothing, 0)

The first argument TopologicalNumber in the named tuple is an vector that stores the $\mathbb{Z}_2$ number for Energy bands below and above some filling condition that you selected in the options (the default is the half-filling). The vector is arranged in order of bands, starting from the lower energy. The second argument Total stores the total of the $\mathbb{Z}_2$ numbers for Energy bands below and above some filling condition (mod2). Total is a quantity that should always return zero.

You can access these values as follows:

julia> sol.TopologicalNumber
2-element Vector{Int64}:
 1
 1

julia> sol.Total
0

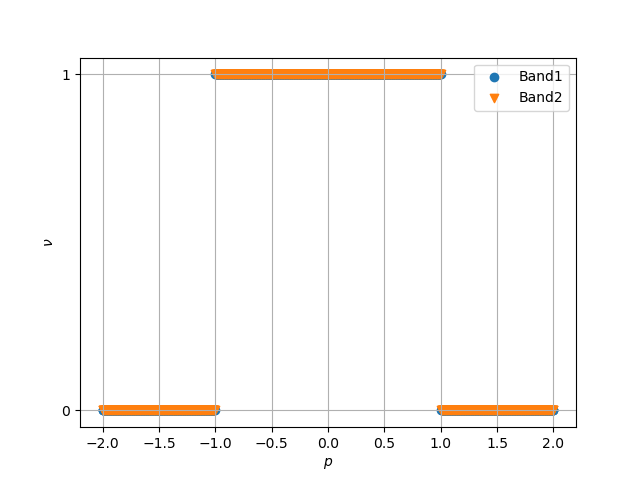

One-dimensional phase diagram is given by:

julia> H(k, p) = H₀(k, (p, 0.25));
julia> param = range(-2, 2, length=1000);

julia> prob = Z2Problem(H);
julia> sol = calcPhaseDiagram(prob, param; plot=true)
(param = -2.0:0.004004004004004004:2.0, nums = [0 0; 0 0; … ; 0 0; 0 0])

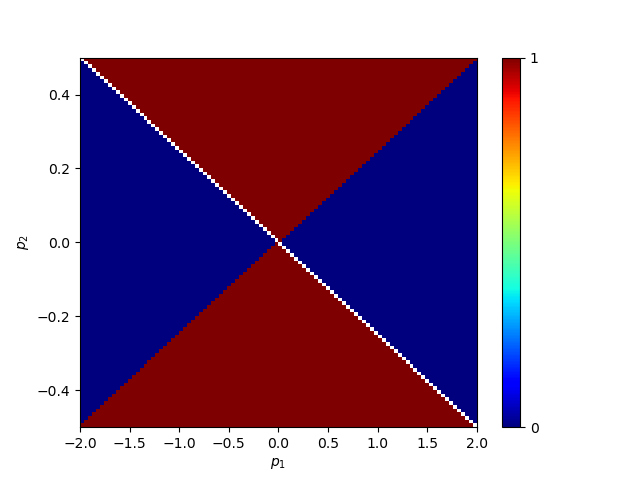

Also, two-dimensional phase diagram is given by:

julia> param1 = range(-2, 2, length=100);
julia> param2 = range(-0.5, 0.5, length=100);

julia> prob = Z2Problem(H₀);
julia> calcPhaseDiagram(prob, param1, param2; plot=true)
